دانلود فایل مشخصات جدول وزنی لوله




جدول اشتال لوله

جدول اشتال لوله

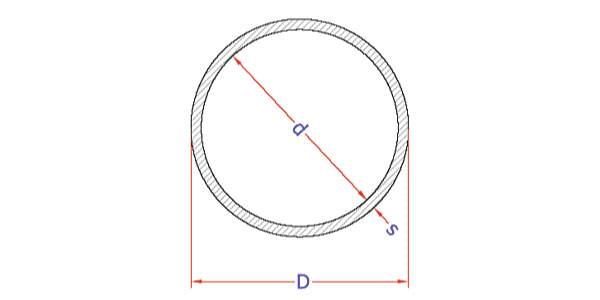

D X s
mm
F
cm2
G
kg/m
Jx
cm4
Wx
cm3
ix
cm
21.3 X 2 1.21 0.962 0.571 0.536 0.686
21.3 X 2.6 1.53 1.21 0.681 0.639 0.668
21.3 X 3.2 1.82 1.44 0.768 0.722 0.65
26.9 X 2 1.56 1.24 1.22 0.907 0.883
26.9 X 2.6 1.98 1.57 1.48 1.1 0.864
26.9 X 3.2 2.38 1.89 1.7 1.27 0.846
33.7 X 2.6 2.54 2.01 3.09 1.84 1.1
33.7 X 3.2 3.07 2.42 3.6 2.14 1.08
33.7 X 4 3.73 2.95 4.19 2.49 1.06
42.4 X 2.6 3.25 2.57 6.46 3.05 1.41
42.4 X 3.2 3.94 3.11 7.62 3.59 1.39
42.4 X 4 4.83 3.81 8.99 4.24 1.36
48.3 X 2.6 3.73 2.95 9.78 4.05 1.62
48.3 X 3.2 4.53 3.59 11.6 4.8 1.6
48.3 X 4 5.57 4.41 13.8 5.7 1.57
60.3 X 2.9 5.23 4.14 21.6 7.16 2.03
60.3 X 3.6 6.41 5.07 25.9 8.58 2.01
60.3 X 4 7.07 5.59 28.2 9.34 2
60.3 X 5 8.69 6.82 33.5 11.1 1.96
76.1 X 2.9 6.67 5.82 44.7 11.8 2.59
76.1 X 3.6 8.2 6.49 54 14.2 2.57
76.1 X 4 9.06 7.17 59.1 15.5 2.55
76.1 X 5 11.2 8.77 70.9 18.6 2.52
88.9 X 3.2 8.62 6.81 79.2 17.8 3.03
88.9 X 3.6 9.65 7.57 87.9 19.8 3.02
88.9 X 4 10.7 8.43 96.3 21.7 3
88.9 X 5 13.2 10.3 116 26.2 2.97
88.9 X 6.3 16.3 12.9 140 31.5 2.93
101.6 X 3.6 11.1 8.76 133 26.2 3.47
101.6 X 4.5 13.7 10.7 162 31.9 3.44
101.6 X 5.6 16.9 13.2 195 38.4 3.4
101.6 X 7.1 21.1 16.6 237 46.6 3.35
108 X 3.6 11.8 9.27 161 29.8 3.69
108 X 4.5 14.6 11.5 196 36.4 3.66
108 X 5.6 18 14.1 237 43.9 3.63
114.3 X 3.6 12.5 9.9 192 33.6 3.92
114.3 X 4.5 15.5 12.1 234 41 3.89
114.3 X 5.6 19.1 15 283 49.6 3.85
114.3 X 7.1 23.9 18.8 345 60.4 3.8
133 X 4 16.2 12.7 337 50.8 4.56
133 X 5.6 22.4 17.6 456 68.5 4.51
133 X 6.3 25.1 19.7 504 75.9 4.49
139.7 X 4 17.1 13.5 393 56.2 4.8
139.7 X 5.6 23.6 18.5 531 76.1 4.75
139.7 X 6.3 26.4 20.8 589 84.3 4.72
139.7 X 7.1 29.6 23.3 652 93.3 4.69
159 X 4.5 21.8 17.2 652 82.1 5.46
159 X 5.6 27 21.2 795 100 5.43
159 X 6.3 30.2 23.7 882 111 5.4
168.3 X 4.5 23.2 18.1 777 92.4 5.79
168.3 X 5.6 28.6 22.4 948 113 5.76
168.3 X 6.3 32.1 25.2 1050 125 5.73
168.3 X 7.1 36 28.3 1170 139 5.7
168.3 X 8.8 44.1 34.5 1410 167 5.65
193.7 X 4.5 26.7 21 1200 124 6.69
193.7 X 5 29.6 23.3 1320 136 6.67
193.7 X 5.4 31.9 25 1420 146 6.66
193.7 X 6.3 37.1 29.1 1630 168 6.63
193.7 X 7.1 41.6 32.8 1810 187 6.6
193.7 X 8 46.7 36.5 2020 208 6.57
193.7 X 8.8 51.1 40 2190 226 6.54
219.1 X 4.5 30.3 23.8 1750 159 7.59
219.1 X 5 33.6 26.4 1930 176 7.57
219.1 X 5.9 39.5 31 2250 205 7.54
219.1 X 6.3 42.1 33.1 2390 218 7.53
219.1 X 7.1 47.3 37.2 2660 243 7.5
219.1 X 8.8 58.1 45.4 3220 294 7.44
219.1 X 10 65.7 51.6 3600 328 7.4
244.5 X 6.3 47.1 37.1 3350 274 8.42
244.5 X 8 59.4 46.5 4160 340 8.37
244.5 X 10 73.3 57.8 5070 415 8.3
244.5 X 11 80.7 63.6 5510 451 8.26
273 X 5 42.1 33.1 3780 277 9.48
273 X 5.6 47 36.9 4210 308 9.46
273 X 6.3 52.8 41.4 4700 344 9.43
273 X 7.1 59.3 46.7 5240 384 9.4
273 X 8.8 73 57.1 6380 467 9.37
273 X 11 90.5 71.4 7780 570 9.27
323.9 X 5 50.1 39.3 6370 393 11.3
323.9 X 5.6 56 44 7090 438 11.3
323.9 X 6.3 62.9 49.3 7930 490 11.2
323.9 X 7.1 70.7 55.6 8870 548 11.2
323.9 X 8.8 87.1 68.1 10820 668 11.1
323.9 X 11 108 85.3 13250 818 11.1
355.6 X 8 87.4 68.3 13200 742 12.3
355.6 X 10 109 85.2 16220 912 12.2
355.6 X 12.5 135 107 19850 1120 12.1
406.4 X 8.8 110 85.9 21730 1070 14.1
406.4 X 11 137 108 26720 1320 14
406.4 X 14.2 175 138 33690 1660 13.9
457.2 X 10 140 110 35140 1540 15.8
457.2 X 14.2 198 156 48350 2120 15.7
457.2 X 17.5 242 189 58510 2560 15.6
508 X 8.8 138 108 43000 1690 17.7
508 X 20 307 241 91430 3600 17.3
558.8 X 8.8 152 119 57510 2060 19.4
558.8 X 20 330 266 123000 4400 19.1
609.6 X 10 188 148 84680 2780 21.2
711.2 X 10 220 173 135400 3810 24.8
812.8 X 16 401 313 318000 7820 28.2
914.4 X 10 284 223 290500 6350 32
914.4 X 25 699 552 691200 15120 31.5
1016 X 10 316 248 399800 7870 35.6
1016 X 25 778 615 956100 18820 35
