جدول اشتال نبشی



دانلود فایل مشخصات جدول وزنی نبشی

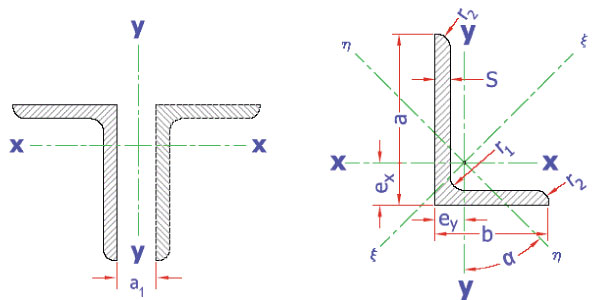

جدول اشتال نبشی بال غیرمساوی

جدول اشتال نبشی بال غیرمساوی
a X b X s
mm		r1
mm		r2
mm		F
cm2		G
kg/m		ex
cm		ey
cm		tan αJx
cm4		Wx
cm3		ix
cm		Jy
cm4		Wy
cm3		iy
cm		Jξ
cm4		iξ
cm		Jη
cm4		iη
cm		a1
mm
  3.5 2.0 1.42 1.11 0.99 0.50 0.431 1.25 0.62 0.94 0.44 0.29 0.56 1.43 1.00 0.25 0.42 5.2
30 X 20 X 4 3.5 2.0 1.85 1.45 1.03 0.54 0.423 1.59 0.81 0.93 0.55 0.38 0.55 1.81 0.99 0.33 0.42 4.2
40 X 20 X 3 3.5 2.0 1.72 1.35 1.43 0.44 0.259 2.79 1.08 1.27 0.47 0.30 0.52 2.96 1.31 0.30 0.42 14.6
40 X 20 X 4 3.5 2.0 2.25 1.77 1.47 0.48 0.252 3.59 1.42 1.26 0.60 0.39 0.52 3.79 1.30 0.39 0.42 13.8
45 X 30 X 3 4.5 2.0 2.19 1.72 1.43 0.70 0.436 4.47 1.46 1.43 1.60 0.70 0.86 5.15 1.53 0.93 0.65 9.0
45 X 30 X 4 4.5 2.0 2.87 2.25 1.48 0.74 0.436 5.78 1.91 1.42 2.05 0.91 0.85 6.65 1.52 1.18 0.64 18.0
45 X 30 X 5 4.5 2.0 3.53 2.77 1.52 0.78 0.430 6.99 2.35 1.41 2.47 1.11 0.84 8.02 1.51 1.44 0.64 7.2
50 X 30 X 5 4.5 2.0 3.78 2.96 1.73 0.74 0.353 9.41 2.88 1.58 2.54 1.12 0.82 10.40 1.66 1.56 0.64 12.2
50 X 40 X 4 4.0 2.0 3.46 2.71 1.52 1.03 0.629 8.54 2.47 1.57 4.86 1.64 1.19 10.90 1.78 2.46 0.84 __
50 X 40 X 5 4.0 2.0 4.27 3.35 1.56 1.07 0.625 10.40 3.02 1.56 5.89 2.01 1.18 13.30 1.76 3.02 0.84 __
60 X 30 X 5 6.0 3.0 4.29 3.37 2.15 0.68 0.256 15.60 4.04 1.90 2.60 1.12 0.78 16.50 1.96 1.69 0.63 21.4
60 X 30 X 7 6.0 3.0 5.85 4.59 2.24 0.76 0.248 20.70 5.50 1.88 3.41 1.52 0.76 21.80 1.93 2.28 0.62 19.2
60 X 40 X 5 6.0 3.0 4.79 3.76 1.96 0.97 0.437 17.20 4.25 1.89 6.11 2.02 1.13 19.80 2.03 3.50 0.86 11.2
60 X 40 X 6 6.0 3.0 5.68 4.46 2.00 1.01 0.433 20.10 5.03 1.88 7.12 2.38 1.12 23.10 2.02 4.12 0.85 10.2
60 X 40 X 7 6.0 3.0 6.55 5.14 2.04 1.05 0.429 23.00 5.79 1.87 8.07 2.74 1.11 26.30 2.00 4.73 0.85 9.2
65 X 50 X 5 6.5 3.5 5.54 4.35 1.99 1.25 0.583 23.10 5.11 2.04 11.90 3.18 1.47 28.80 2.28 6.21 1.06 3.6
65 X 50 X 7 6.5 3.5 7.60 5.97 2.07 1.33 0.574 31.00 6.99 2.02 15.80 4.31 1.44 38.40 2.25 8.37 1.05 1.8
65 X 50 X 9 6.5 3.5 9.58 7.52 2.15 1.41 0.567 38.20 8.77 2.00 19.40 5.39 1.42 47.00 2.22 10.50 1.05 __
75 X 50 X 5 6.5 3.5 6.04 4.74 2.40 1.17 0.437 34.40 6.74 2.39 12.30 3.21 1.43 39.60 2.56 7.10 1.08 15.0
75 X 50 X 7 6.5 3.5 8.30 6.51 2.48 1.25 0.433 46.40 9.24 2.36 16.50 4.39 1.41 53.30 2.53 9.56 1.07 13.0
75 X 50 X 9 6.5 3.5 10.50 8.23 2.56 1.32 0.427 57.40 11.60 2.34 20.20 5.49 1.39 65.70 2.50 11.90 1.07 11.0
75 X 55 X 5 7.0 3.5 6.30 4.95 2.31 1.33 0.530 35.50 6.84 2.37 16.20 3.89 1.60 43.10 2.61 8.68 1.17 8.4
75 X 55 X 7 7.0 3.5 8.66 6.80 2.40 1.41 0.527 47.90 9.39 2.35 21.80 5.32 1.59 57.90 2.59 11.80 1.17 6.6
75 X 55 X 9 7.0 3.5 10.90 8.59 2.47 1.48 0.518 59.40 11.80 2.33 26.80 6.66 1.57 71.30 2.55 14.80 1.16 5.0
80 X 40 X 6 7.0 3.5 6.89 5.41 2.85 0.88 0.259 44.90 8.73 2.55 7.59 2.44 1.05 47.60 2.63 4.90 0.84 29.0
80 X 40 X 8 7.0 3.5 9.01 7.07 2.94 0.95 0.253 57.60 11.40 2.53 9.68 3.18 1.04 60.90 2.60 6.41 0.84 27.2
80 X 65 X 6 8.0 4.0 8.41 6.60 2.39 1.65 0.649 52.80 9.41 2.51 31.20 6.44 1.93 68.50 2.85 15.60 1.36 __
80 X 65 X 8 8.0 4.0 11.00 8.66 2.47 1.73 0.645 68.10 12.30 2.49 40.10 8.41 1.91 88.00 2.82 20.30 1.36 __
80 X 65 X 10 8.0 4.0 13.60 10.70 2.55 1.81 0.640 82.20 15.10 2.46 48.30 10.30 1.89 106.00 2.79 24.80 1.35 __
90 X 60 X 6 7.0 3.5 8.69 6.82 2.89 1.41 0.442 71.70 11.70 2.87 25.80 5.61 1.72 82.80 3.09 14.60 1.30 17.8
90 X 60 X 8 7.0 3.5 11.40 8.96 2.97 1.49 0.437 92.50 15.40 2.85 33.00 7.31 1.70 107.00 3.06 19.00 1.29 16.0
90 X 75 X 7 8.5 4.5 11.10 8.74 2.67 1.93 0.683 88.10 13.90 2.81 55.50 9.98 2.23 117.00 3.24 27.10 1.56 __
100 X 50 X 6 9.0 4.5 8.73 6.85 3.49 1.04 0.263 89.70 13.80 3.20 15.30 3.86 1.32 95.20 3.30 9.78 1.06 37.6
100 X 50 X 8 9.0 4.5 11.50 8.99 3.59 1.13 0.258 116.00 18.00 3.18 19.50 5.04 1.31 123.00 3.28 12.60 1.05 35.4
100 X 50 X 10 9.0 4.5 14.10 11.10 3.67 1.20 0.252 141.00 22.20 3.16 23.40 6.17 1.29 149.00 3.25 15.50 1.04 33.8
100 X 65 X 7 10.0 5.0 11.20 8.77 3.23 1.51 0.419 113.00 16.60 3.17 37.60 7.54 1.84 128.00 3.39 21.60 1.39 21.8
100 X 65 X 9 10.0 5.0 14.20 11.10 3.32 1.59 0.415 141.00 21.00 3.15 46.70 9.52 1.82 160.00 3.36 27.20 1.39 19.8
100 X 65 X 11 10.0 5.0 17.10 13.40 3.40 1.67 0.410 167.00 25.30 3.13 55.10 11.40 1.80 190.00 3.34 32.60 1.38 17.8
100 X 75 X 7 10.0 5.0 11.90 9.32 3.06 1.83 0.553 118.00 17.00 3.15 56.90 10.00 2.19 145.00 3.49 30.10 1.59 8.8
100 X 75 X 9 10.0 5.0 15.10 11.80 3.15 1.91 0.549 148.00 21.50 3.13 71.00 12.70 2.17 181.00 3.47 37.80 1.59 7.0
100 X 75 X 11 10.0 5.0 18.20 14.30 3.23 1.99 0.545 176.00 25.90 3.11 84.00 15.30 2.15 214.00 3.44 45.40 1.58 5.2
120 X 80 X 8 11.0 5.5 15.50 12.20 3.83 1.87 0.441 226.00 27.60 3.82 80.80 13.20 2.29 261.00 4.10 45.80 1.72 24.0
120 X 80 X 10 11.0 5.5 19.10 15.00 3.92 1.95 0.438 276.00 34.10 3.80 98.10 16.20 2.27 318.00 4.07 56.10 1.71 22.2
120 X 80 X 12 11.0 5.5 22.70 17.80 4.00 2.03 0.433 323.00 40.40 3.77 114.00 19.10 2.25 371.00 4.04 66.10 1.71 20.2
120 X 80 X 14 11.0 5.5 26.20 20.50 4.08 2.10 0.429 368.00 46.40 3.75 130.00 22.00 2.23 421.00 4.01 75.80 1.70 18.4
130 X 65 X 8 11.0 5.5 15.10 11.90 4.56 1.37 0.263 263.00 31.10 4.17 44.80 8.72 1.72 280.00 4.31 28.60 1.38 48.6
130 X 65 X 10 11.0 5.5 18.60 14.60 4.65 1.45 0.259 321.00 38.40 4.15 54.20 10.70 1.71 340.00 4.27 35.00 1.37 46.8
130 X 65 X 12 11.0 5.5 22.10 17.30 4.74 1.53 0.255 376.00 45.50 4.12 63.00 12.70 1.69 397.00 4.24 41.20 1.37 44.6
130 X 75 X 8 10.5 5.5 15.90 12.50 4.36 1.65 0.339 276.00 31.90 4.17 68.30 11.70 2.08 303.00 4.37 41.30 1.61 39.2
130 X 75 X 10 10.5 5.5 19.60 15.40 4.45 1.73 0.336 337.00 39.40 4.14 82.90 14.40 2.06 369.00 4.34 50.60 1.61 37.4
130 X 75 X 12 10.5 5.5 23.30 18.30 4.53 1.81 0.332 395.00 46.60 4.12 96.50 17.00 2.04 432.00 4.31 59.60 1.60 35.4
130 X 90 X 10 12.0 6.0 21.20 16.60 4.15 2.18 0.472 358.00 40.50 4.11 141.00 20.60 2.58 420.00 4.46 78.50 1.93 20.4
130 X 90 X 12 12.0 6.0 25.10 19.70 4.24 2.26 0.468 420.00 48.00 4.09 165.00 24.40 2.56 492.00 4.43 92.60 1.92 18.6
150 X 75 X 9 10.5 5.5 19.50 15.30 5.28 1.57 0.265 455.00 46.80 4.83 78.30 13.20 2.00 484.00 4.98 50.00 1.60 56.4
150 X 75 X 11 10.5 5.5 23.60 18.60 5.37 1.65 0.261 545.00 56.60 4.80 93.00 15.90 1.98 578.00 4.95 59.80 1.59 54.4
150 X 90 X 10 12.5 6.5 23.20 18.20 4.99 2.03 0.360 532.00 53.10 4.79 145.00 20.90 2.51 589.00 5.05 88.00 1.95 41.0
150 X 90 X 12 12.5 6.5 27.50 21.60 5.08 2.11 0.358 626.00 63.10 4.77 170.00 24.70 2.49 693.00 5.02 103.00 1.94 39.2
150 X 100 X 10 13.0 6.5 24.20 19.00 4.80 2.34 0.442 552.00 54.10 4.78 198.00 25.80 2.86 637.00 5.13 112.00 2.15 29.8
150 X 100 X 12 13.0 6.5 28.70 22.60 4.89 2.42 0.439 650.00 64.20 4.76 232.00 30.60 2.84 749.00 5.10 132.00 2.15 28.0
150 X 100 X 14 13.0 6.5 33.20 26.10 4.97 2.50 0.435 744.00 74.10 4.73 264.00 35.20 2.82 856.00 5.07 152.00 2.14 26.2
160 X 80 X 10 13.0 6.5 23.20 18.20 5.63 1.69 0.263 611.00 58.90 5.14 104.00 16.50 2.12 648.00 5.29 67.00 1.70 59.7
160 X 80 X 12 13.0 6.5 27.50 21.60 5.72 1.77 0.259 720.00 70.00 5.11 122.00 19.60 2.10 763.00 5.26 78.90 1.69 57.9
160 X 80 X 14 13.0 6.5 31.80 25.00 5.81 1.85 0.256 823.00 80.70 5.09 139.00 22.50 2.09 871.00 5.23 90.50 1.69 55.8
180 X 90 X 10 14.0 7.0 26.20 20.60 6.28 1.85 0.262 880.00 75.10 5.80 151.00 21.20 2.40 934.00 5.97 97.40 1.93 69.0
180 X 90 X 12 14.0 7.0 31.20 24.50 6.37 1.93 0.261 1040.00 89.30 5.77 177.00 25.10 2.38 1100.00 5.94 114.00 1.92 67.0
180 X 90 X 14 14.0 7.0 36.10 28.30 6.46 2.01 0.259 1190.00 103.00 5.75 202.00 28.90 2.37 1260.00 5.92 131.00 1.91 65.0
200 X 100 X 10 15.0 7.5 29.20 23.00 6.93 2.01 0.266 1220.00 93.20 6.46 210.00 26.30 2.68 1300.00 6.66 133.00 2.14 77.4
200 X 100 X 12 15.0 7.5 34.80 27.30 7.03 2.10 0.264 1440.00 111.00 6.43 247.00 31.30 2.67 1530.00 6.63 158.00 2.13 75.2
200 X 100 X 14 15.0 7.5 40.30 31.60 7.12 2.18 0.262 1650.00 128.00 6.41 282.00 36.10 2.65 1760.00 6.60 181.00 2.12 73.0
200 X 100 X 16 15.0 7.5 45.70 35.90 7.20 2.26 0.259 1860.00 145.00 6.38 316.00 40.80 2.63 1970.00 6.57 204.00 2.11 71.0
250 X 90 X 10 15.0 7.5 33.20 26.10 9.45 1.56 0.154 2170.00 140.00 8.08 161.00 21.70 2.20 2220.00 8.17 112.00 1.84 126.0
250 X 90 X 12 15.0 7.5 39.60 31.10 9.55 1.65 0.153 2570.00 166.00 8.05 189.00 25.80 2.19 2630.00 8.14 132.00 1.83 124.0
250 X 90 X 14 15.0 7.5 45.90 36.00 9.65 1.73 0.152 2960.00 192.00 8.03 216.00 29.70 2.17 3020.00 8.11 152.00 1.82 120.0
250 X 90 X 16 15.0 7.5 52.10 40.90 9.74 1.81 0.150 3330.00 218.00 8.00 242.00 33.60 2.16 3400.00 8.08 171.00 1.81 118.0

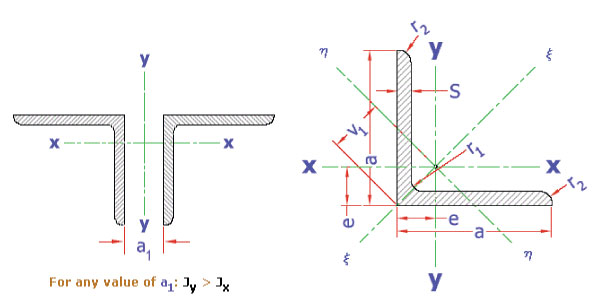

جدول اشتال نبشی بال مساوی

جدول اشتال نبشی بال مساوی
a X s
mm		r1
mm		r2
mm		F
cm2		G
kg/m		e
cm		w
cm		v1
cm		Jx=Jy
cm4		Wx=Wy
cm3		ix=iy
cm		Jξ
cm4		iξ
cm		Jη
cm		Wη
cm3		iη
cm
20 X 3 3.5 2.0 1.12 0.88 0.60 1.41 0.85 0.39 0.28 0.59 0.62 0.74 0.15 0.18 0.37
20 X 4 3.5 2.0 1.45 1.14 0.64 1.41 0.90 0.48 0.35 0.58 0.77 0.73 0.19 0.21 0.36
25 X 3 3.5 2.0 1.42 1.12 0.73 1.77 1.03 0.79 0.45 0.75 1.27 0.95 0.31 0.30 0.47
25 X 4 3.5 2.0 1.85 1.45 0.76 1.77 1.08 1.01 0.58 0.74 1.61 0.93 0.40 0.37 0.47
25 X 5 3.5 2.0 2.26 1.77 0.80 1.77 1.13 1.18 0.69 0.72 1.87 0.91 0.50 0.44 0.47
30 X 3 5.0 2.5 1.74 1.36 0.84 2.12 1.18 1.41 0.65 0.90 2.24 1.14 0.57 0.48 0.57
30 X 4 5.0 2.5 2.27 1.78 0.89 2.12 1.24 1.81 0.86 0.89 2.85 1.12 0.76 0.61 0.58
30 X 5 5.0 2.5 2.78 2.18 0.92 2.12 1.30 2.16 1.04 0.88 3.41 1.11 0.91 0.70 0.57
35 X 3 5.0 2.5 2.04 1.60 0.96 2.47 1.36 2.29 0.90 1.06 3.63 1.34 0.95 0.70 0.68
35 X 4 5.0 2.5 2.67 2.10 1.00 2.47 1.41 2.96 1.18 1.05 4.68 1.33 1.24 0.88 0.68
35 X 5 5.0 2.5 3.28 2.57 1.04 2.47 1.47 3.56 1.45 1.04 5.63 1.31 1.49 1.01 0.67
35 X 6 5.0 2.5 3.87 3.04 1.08 2.47 1.53 4.14 1.71 1.04 6.50 1.30 1.77 1.16 0.68
40 X 3 6.0 3.0 2.35 1.84 1.07 2.83 1.52 3.45 1.18 1.21 5.45 1.52 1.44 0.95 0.78
40 X 4 6.0 3.0 3.08 2.42 1.12 2.83 1.58 4.48 1.56 1.21 7.09 1.52 1.86 1.18 0.78
40 X 5 6.0 3.0 3.79 2.97 1.16 2.83 1.64 5.43 1.91 1.20 8.64 1.51 2.22 1.35 0.77
40 X 6 6.0 3.0 4.48 3.52 1.20 2.83 1.70 6.33 2.26 1.19 9.98 1.49 2.67 1.57 0.77
45 X 4 7.0 3.5 3.49 2.74 1.23 3.18 1.75 6.43 1.97 1.36 10.20 1.71 2.68 1.53 0.88
45 X 5 7.0 3.5 4.30 3.38 1.28 3.18 1.81 7.83 2.43 1.35 12.40 1.70 3.25 1.80 0.87
45 X 6 7.0 3.5 5.09 4.00 1.32 3.18 1.87 9.16 2.88 1.34 14.50 1.69 3.83 2.05 0.87
45 X 7 7.0 3.5 5.86 4.60 1.36 3.18 1.92 10.40 3.31 1.33 16.40 1.67 4.39 2.29 0.87
50 X 4 7.0 3.5 3.89 3.06 1.36 3.54 1.92 8.97 2.46 1.52 14.20 1.91 3.73 1.94 0.98
50 X 5 7.0 3.5 4.80 3.77 1.40 3.54 1.98 11.00 3.05 1.51 17.40 1.90 4.59 2.32 0.98
50 X 6 7.0 3.5 5.69 4.47 1.45 3.54 2.04 12.80 3.61 1.50 20.40 1.89 5.24 2.57 0.96
50 X 7 7.0 3.5 6.56 5.15 1.49 3.54 2.11 14.60 4.15 1.49 23.10 1.88 6.02 2.85 0.96
50 X 8 7.0 3.5 7.41 5.82 1.52 3.54 2.16 16.30 4.68 1.48 25.70 1.86 6.87 3.19 0.96
50 X 9 7.0 3.5 8.24 6.47 1.56 3.54 2.21 17.90 5.20 1.47 28.10 1.85 7.67 3.47 0.97
55 X 5 8.0 4.0 5.32 4.18 1.52 3.89 2.15 14.70 3.70 1.66 23.30 2.09 6.11 2.84 1.07
55 X 6 8.0 4.0 6.31 4.95 1.56 3.89 2.21 17.30 4.40 1.66 27.40 2.08 7.24 3.28 1.07
55 X 8 8.0 4.0 8.23 6.46 1.64 3.89 2.32 22.10 5.72 1.64 34.80 2.06 9.35 4.03 1.07
55 X 10 8.0 4.0 10.10 7.90 1.72 3.89 2.43 26.30 6.97 1.62 41.40 2.02 11.30 4.65 1.06
60 X 5 8.0 4.0 5.82 4.57 1.64 4.24 2.32 19.40 4.45 1.82 30.70 2.30 8.03 3.46 1.17
60 X 6 8.0 4.0 6.91 5.42 1.69 4.24 2.39 22.80 5.29 1.82 36.10 2.29 9.43 3.95 1.17
60 X 8 8.0 4.0 9.03 7.09 1.77 4.24 2.50 29.10 6.88 1.80 46.10 2.26 12.10 4.84 1.16
60 X 10 8.0 4.0 11.10 8.69 1.85 4.24 2.62 34.90 8.41 1.78 55.10 2.23 14.60 5.57 1.15
65 X 6 9.0 4.5 7.53 5.91 1.80 4.60 2.55 29.20 6.21 1.97 46.30 2.48 12.10 4.74 1.27
65 X 7 9.0 4.5 8.70 6.83 1.85 4.60 2.62 33.40 7.18 1.96 53.00 2.47 13.80 5.27 1.26
65 X 8 9.0 4.5 9.85 7.73 1.89 4.60 2.67 37.50 8.13 1.95 59.40 2.46 15.60 5.84 1.26
65 X 9 9.0 4.5 11.00 8.62 1.93 4.60 2.73 41.30 9.04 1.94 65.40 2.44 17.20 6.30 1.25
65 X 11 9.0 4.5 13.20 10.30 2.00 4.60 2.83 48.80 10.80 1.91 76.80 2.42 20.70 7.31 1.25
70 X 6 9.0 4.5 8.13 6.38 1.93 4.95 2.73 36.90 7.27 2.13 58.50 2.68 15.30 5.60 1.37
70 X 7 9.0 4.5 9.40 7.38 1.97 4.95 2.79 42.40 8.43 2.12 67.10 2.67 17.60 6.31 1.37
70 X 9 9.0 4.5 11.90 9.34 2.05 4.95 2.90 52.60 10.60 2.10 83.10 2.64 22.00 7.59 1.36
70 X 11 9.0 4.5 14.30 11.20 2.13 4.95 3.01 61.80 12.70 2.08 97.60 2.61 26.00 8.64 1.35
75 X 6 10.0 5.0 8.75 6.87 2.04 5.30 2.89 45.60 8.35 2.28 72.20 2.87 18.90 6.54 1.47
75 X 7 10.0 5.0 10.10 7.94 2.09 5.30 2.95 52.40 9.67 2.28 83.60 2.88 21.10 7.15 1.45
75 X 8 10.0 5.0 11.50 9.03 2.13 5.30 3.01 58.90 11.00 2.26 93.30 2.85 24.40 8.11 1.46
75 X 10 10.0 5.0 14.10 11.10 2.21 5.30 3.12 71.40 13.50 2.25 113.00 2.83 29.80 9.55 1.45
75 X 12 10.0 5.0 16.70 13.10 2.29 5.30 3.24 82.40 15.80 2.22 130.00 2.79 34.70 10.70 1.44
80 X 7 10.0 5.0 10.80 8.49 2.21 5.66 3.13 64.20 11.10 2.44 102.00 3.07 26.50 8.48 1.57
80 X 8 10.0 5.0 12.30 9.66 2.26 5.66 3.20 72.30 12.60 2.42 115.00 3.06 29.60 9.25 1.55
80 X 10 10.0 5.0 15.10 11.90 2.34 5.66 3.31 87.50 15.50 2.41 139.00 3.03 35.90 10.90 1.54
80 X 12 10.0 5.0 17.90 14.10 2.41 5.66 3.41 102.00 18.20 2.39 161.00 3.00 43.00 12.60 1.53
80 X 14 10.0 5.0 20.60 16.10 2.48 5.66 3.51 115.00 20.80 2.36 181.00 2.96 48.60 13.90 1.54
90 X 8 11.0 5.5 13.90 10.90 2.50 6.36 3.53 104.00 16.10 2.74 165.00 3.45 43.50 12.30 1.77
90 X 9 11.0 5.5 15.50 12.20 2.54 6.36 3.59 116.00 18.00 2.74 184.00 3.45 47.80 13.30 1.76
90 X 11 11.0 5.5 18.70 14.70 2.62 6.36 3.70 138.00 21.60 2.72 218.00 3.41 57.10 15.40 1.75
90 X 13 11.0 5.5 21.80 17.10 2.70 6.36 3.81 158.00 25.10 2.69 250.00 3.39 65.90 17.30 1.74
90 X 16 11.0 5.5 26.40 20.70 2.81 6.36 3.97 186.00 30.10 2.66 294.00 3.34 79.10 19.90 1.73
100 X 8 12.0 6.0 15.50 12.20 2.74 7.07 3.87 145.00 19.90 3.06 230.00 3.85 59.90 15.50 1.96
100 X 10 12.0 6.0 19.20 15.10 2.82 7.07 3.99 177.00 24.70 3.04 280.00 3.82 73.30 18.40 1.95
100 X 12 12.0 6.0 22.70 17.80 2.90 7.07 4.10 207.00 29.20 3.02 328.00 3.80 86.20 21.00 1.95
100 X 14 12.0 6.0 26.20 20.60 2.98 7.07 4.21 235.00 33.50 3.00 372.00 3.77 98.30 23.40 1.94
100 X 16 12.0 6.0 29.60 23.20 3.06 7.07 4.32 262.00 37.70 2.97 413.00 3.74 111.00 25.60 1.93
100 X 20 12.0 6.0 36.20 28.40 3.20 7.07 4.53 311.00 45.70 2.93 487.00 3.67 135.00 29.80 1.93
110 X 10 12.0 6.0 21.20 16.60 3.07 7.78 4.34 239.00 30.10 3.36 379.00 4.23 98.60 22.70 2.16
110 X 12 12.0 6.0 25.10 19.70 3.15 7.78 4.45 280.00 35.70 3.34 444.00 4.21 116.00 26.10 2.15
110 X 14 12.0 6.0 29.00 22.80 3.21 7.78 4.54 319.00 41.00 3.32 505.00 4.18 133.00 29.30 2.14
120 X 11 13.0 6.5 25.40 19.90 3.36 8.49 4.75 341.00 39.50 3.66 541.00 4.62 140.00 29.50 2.35
120 X 12 13.0 6.5 27.50 21.60 3.40 8.49 4.80 368.00 42.70 3.65 584.00 4.60 152.00 31.60 2.35
120 X 13 13.0 6.5 29.70 23.30 3.44 8.49 4.86 394.00 46.00 3.64 625.00 4.59 162.00 33.30 2.34
120 X 15 13.0 6.5 33.90 26.60 3.51 8.49 4.96 446.00 52.50 3.63 705.00 4.56 186.00 37.50 2.34
130 X 12 14.0 7.0 30.00 23.60 3.64 9.19 5.15 472.00 50.40 3.97 750.00 5.00 194.00 37.70 2.54
130 X 14 14.0 7.0 34.70 27.20 3.72 9.19 5.26 540.00 58.20 3.94 857.00 4.97 223.00 42.40 2.53
130 X 16 14.0 7.0 39.30 30.90 3.80 9.19 5.37 605.00 65.80 3.92 959.00 4.94 251.00 46.70 2.52
140 X 13 15.0 7.5 35.00 27.50 3.92 9.90 5.54 638.00 63.30 4.27 1010.00 5.38 262.00 47.30 2.74
140 X 15 15.0 7.5 40.00 31.40 4.00 9.90 5.66 723.00 72.30 4.25 1150.00 5.36 298.00 52.70 2.73
150 X 12 16.0 8.0 34.80 27.30 4.12 10.60 5.38 737.00 67.70 4.60 1170.00 5.80 303.00 52.00 2.95
150 X 14 16.0 8.0 40.30 31.60 4.21 10.60 5.95 845.00 78.20 4.58 1340.00 5.77 347.00 58.30 2.94
150 X 15 16.0 8.0 43.00 33.80 4.25 10.60 6.01 898.00 83.50 4.57 1430.00 5.76 370.00 61.60 2.93
150 X 16 16.0 8.0 45.70 35.90 4.29 10.60 6.07 949.00 88.70 4.56 1510.00 5.74 391.00 64.40 2.93
150 X 18 16.0 8.0 51.00 40.10 4.36 10.60 6.17 1050.00 99.30 4.54 1670.00 5.70 438.00 71.00 2.93
150 X 20 16.0 8.0 56.30 44.20 4.44 10.60 6.28 1150.00 109.00 4.51 1820.00 5.68 477.00 76.00 2.91
160 X 15 17.0 8.5 46.10 36.20 4.49 11.30 6.35 1100.00 95.60 4.88 1750.00 6.15 453.00 71.30 3.14
160 X 17 17.0 8.5 51.80 40.70 4.57 11.30 6.46 1230.00 108.00 4.86 1950.00 6.13 506.00 78.30 3.13
160 X 19 17.0 8.5 57.50 45.10 4.65 11.30 6.58 1350.00 118.00 4.84 2140.00 6.10 558.00 84.80 3.12
180 X 16 18.0 9.0 55.40 43.50 5.02 12.70 7.11 1680.00 130.00 5.51 2690.00 6.96 679.00 95.50 3.50
180 X 18 18.0 9.0 61.90 48.60 5.10 12.70 7.22 1870.00 145.00 5.49 2970.00 6.93 757.00 105.00 3.49
180 X 20 18.0 9.0 68.40 53.70 5.18 12.70 7.33 2040.00 160.00 5.47 3260.00 6.90 830.00 113.00 3.49
180 X 22 18.0 9.0 74.70 58.60 5.26 12.70 7.44 2210.00 174.00 5.44 3510.00 6.86 918.00 123.00 3.50
200 X 16 18.0 9.0 61.80 48.50 5.52 14.10 7.80 2340.00 162.00 6.15 3740.00 7.78 943.00 121.00 3.91
200 X 18 18.0 9.0 69.10 54.30 5.60 14.10 7.92 2600.00 181.00 6.13 4150.00 7.75 1050.00 133.00 3.90
200 X 20 18.0 9.0 76.40 59.90 5.68 14.10 8.04 2850.00 199.00 6.11 4540.00 7.72 1160.00 144.00 3.89
200 X 24 18.0 9.0 90.60 71.10 5.84 14.10 8.26 3330.00 235.00 6.06 5280.00 7.64 1380.00 167.00 3.90
200 X 28 18.0 9.0 105.00 82.00 5.99 14.10 8.47 3780.00 270.00 6.02 5990.00 7.57 1580.00 186.00 3.89
به این مطلب امتیاز دهید
4 از 5 (11 امتیاز)
دسترسی سریع به آهن پخش
